# BGP

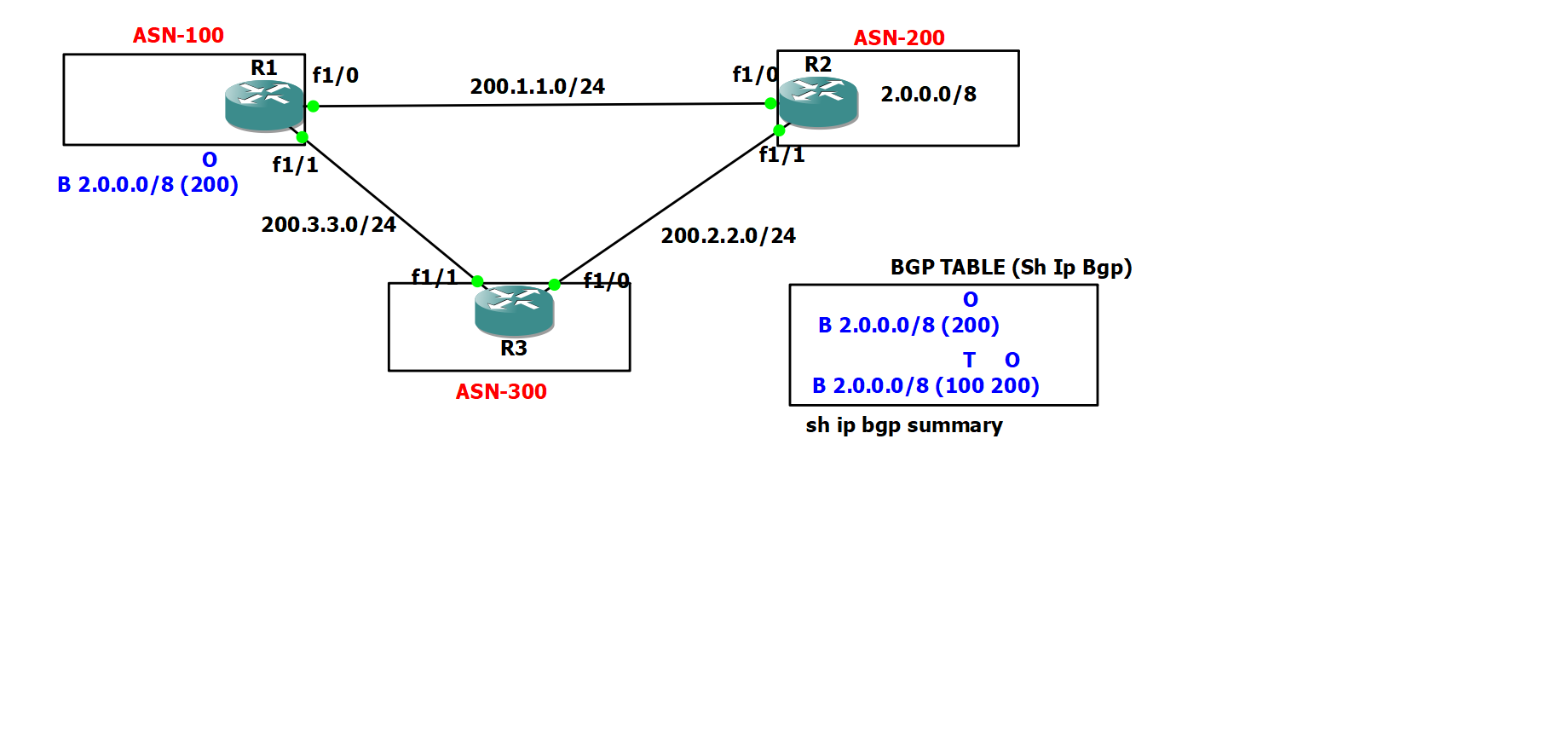

### Intro

<div><figure><img src="https://1856860631-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsNc001Xcz63mWjGXymkd%2Fuploads%2FJ4Y5eOcIstV9pksIzML4%2FBGP-1.png?alt=media&#x26;token=5b7bb577-90be-412d-90d8-0cdd839c1427" alt=""><figcaption></figcaption></figure> <figure><img src="https://1856860631-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsNc001Xcz63mWjGXymkd%2Fuploads%2FfFt0pNqt8m88ewlPB2Jy%2FBGP-2.png?alt=media&#x26;token=06e22e6d-1466-497a-9aab-39970222f8a7" alt=""><figcaption></figcaption></figure></div>

### BGP Design

<figure><img src="https://1856860631-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsNc001Xcz63mWjGXymkd%2Fuploads%2F3VQDU1YJfX26CdnjzHa6%2FBGP%20Design.png?alt=media&#x26;token=dfb2661d-1f72-4e25-abfd-b06add629616" alt=""><figcaption></figcaption></figure>

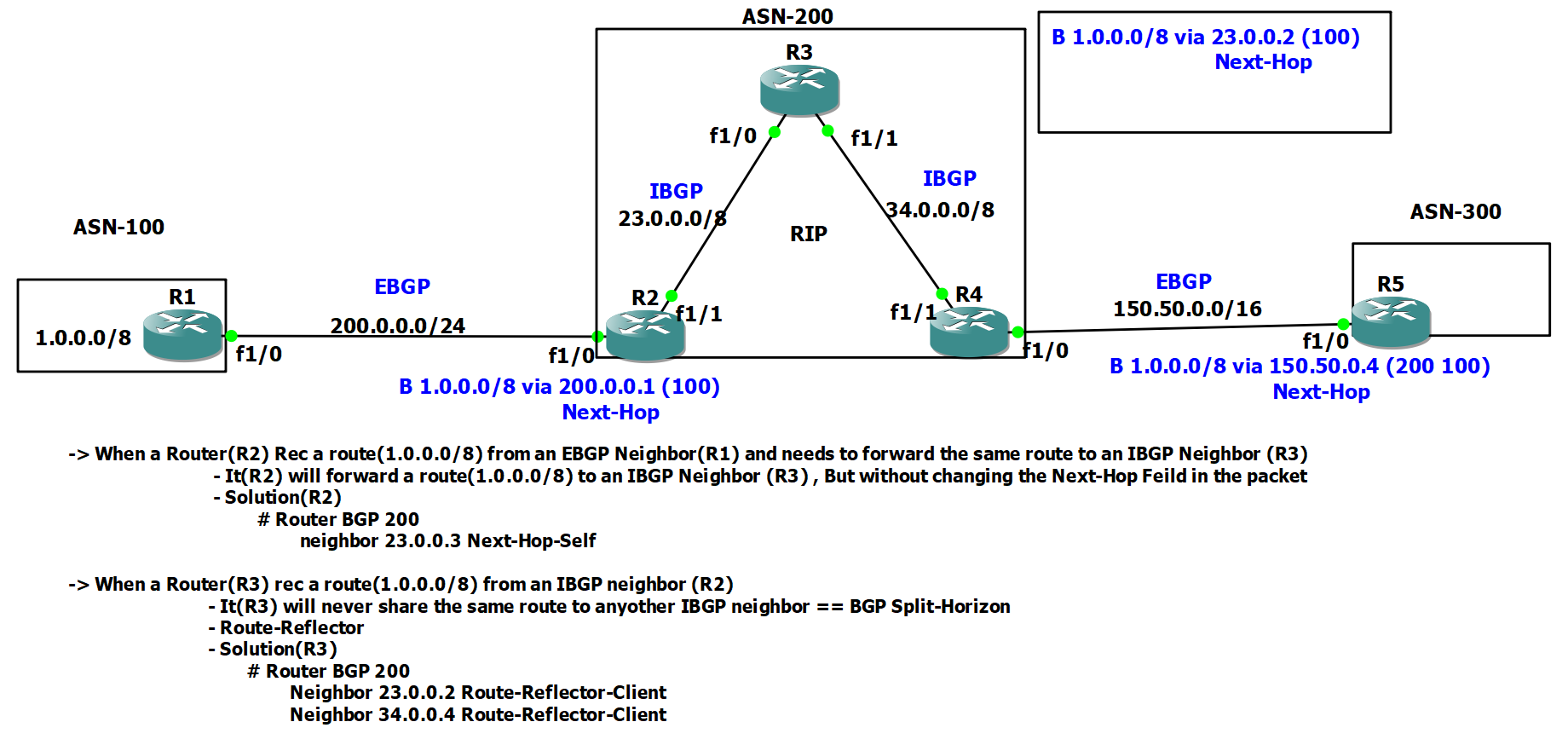

### BGP IBGP Issue

<figure><img src="https://1856860631-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsNc001Xcz63mWjGXymkd%2Fuploads%2FPtAWRwFOdFPoGmjyfqeU%2FEBGP%20IBGP%20and%20IBGP%20Issues.png?alt=media&#x26;token=58321f44-d581-4881-a2c4-70898f6b5675" alt=""><figcaption></figcaption></figure>

### BGP Routefilteration and authentication

<figure><img src="https://1856860631-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsNc001Xcz63mWjGXymkd%2Fuploads%2FSQ6M0ag9pXTEhIS0AYD8%2FRoute-Filteration%20with%20Authentication.png?alt=media&#x26;token=8dc12c1c-0d20-4410-ac8b-61177b0e91dd" alt=""><figcaption></figcaption></figure>

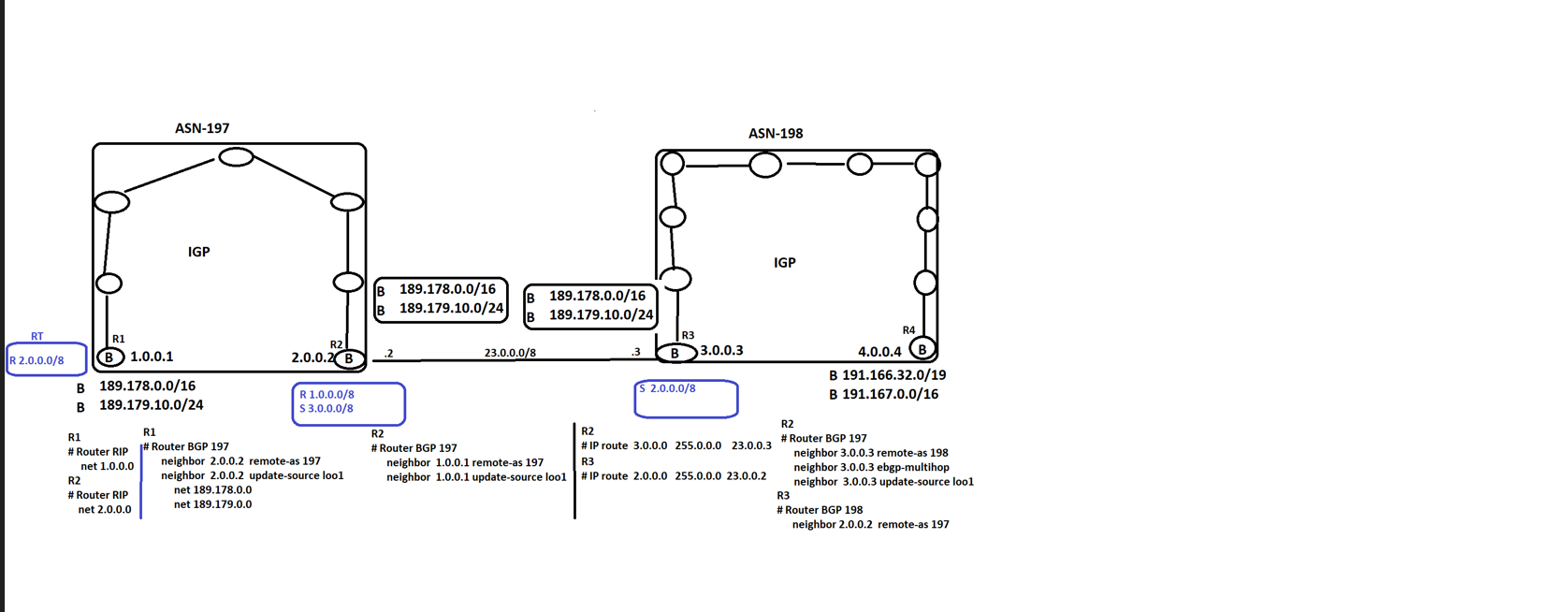

### Directly and Non-Directly connected neighbor

<figure><img src="https://1856860631-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsNc001Xcz63mWjGXymkd%2Fuploads%2FptE7kvxm97Ob8bEqxixZ%2Fimage.png?alt=media&#x26;token=e230fc26-1b48-40b0-9514-6bdc9e06b5d8" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1856860631-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsNc001Xcz63mWjGXymkd%2Fuploads%2Fcm15pbfDYkEUp4jlCTfJ%2Fimage.png?alt=media&#x26;token=1de3d81a-09fb-4510-8cc0-cd9ca53ce8f4" alt=""><figcaption></figcaption></figure>

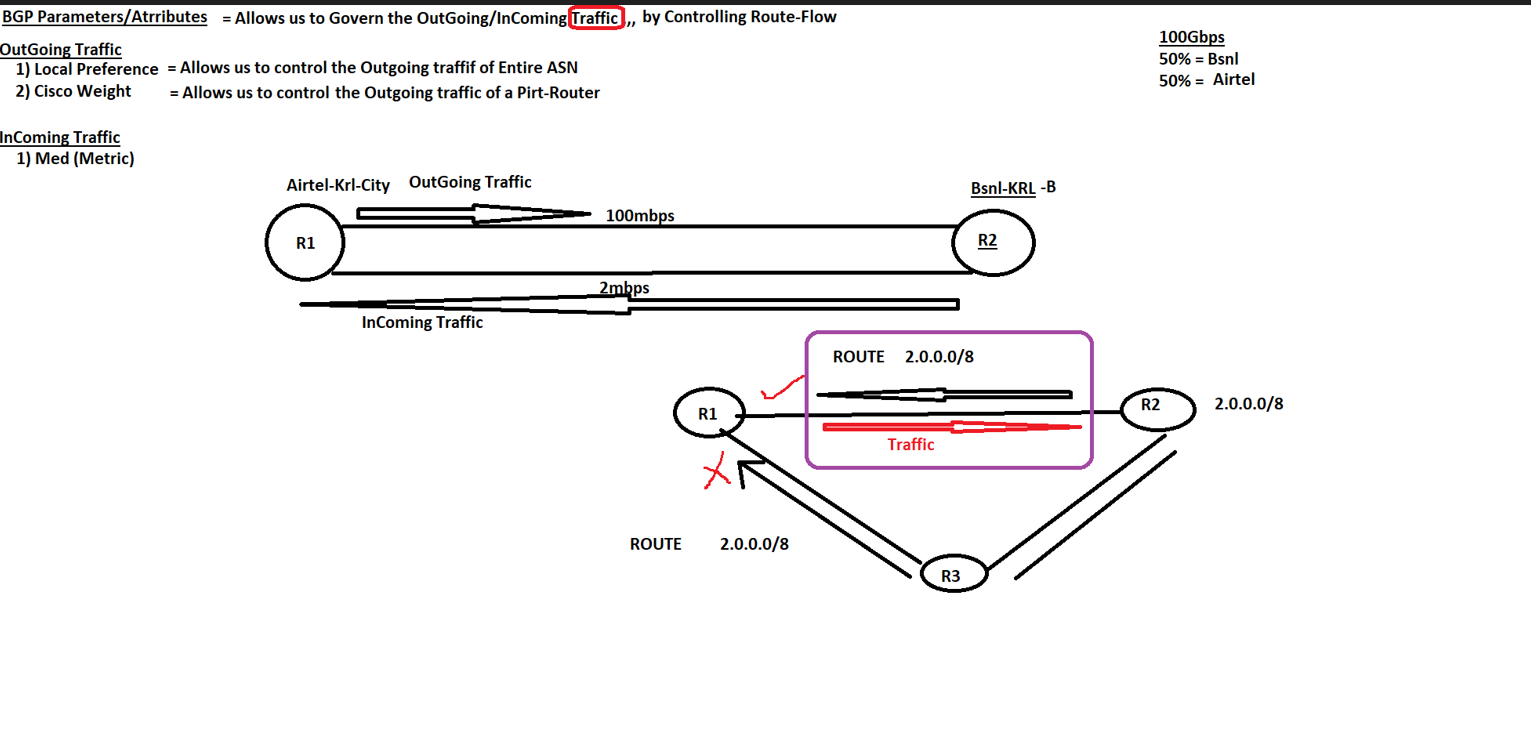

### BGP Attributes/Parameters

<figure><img src="https://1856860631-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsNc001Xcz63mWjGXymkd%2Fuploads%2Fo66KRLB0VEEBsBkTBXZK%2Fimage.png?alt=media&#x26;token=2965d289-ea79-4de5-98c9-6d39ee079cf9" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1856860631-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsNc001Xcz63mWjGXymkd%2Fuploads%2FixRFf3Bp5mI2XyUyEfge%2FBGP%20Parameters.png?alt=media&#x26;token=c45aba89-35c8-4a20-a2b9-d44acdbf0426" alt=""><figcaption></figcaption></figure>
